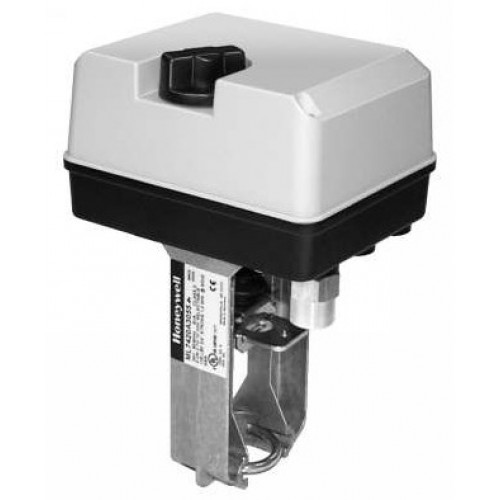

Honeywell Valve Actuators ML6420A3049, ML6420A3056, ML6420A3072/U
ML6420
Honeywell ML6195 spring return direct coupled actuator is a floating control motor which provides switched or floating single-pole, double-throw (SPDT) control to operate dampers and valves in HVAC applications.
ML6420A3049
Non-spring return direct-coupled, linear-stroke, 135 lbf valve actuator
ML6420A3056
Non-spring return direct-coupled, linear-stroke, 135 lbf valve actuator
ML6420A3072/U
Creval Non-spring return on/off actuator
Overview
The ML6420 Non-Spring Return Electric Linear Valve Actuators, are floating control actuators, used with controllers that provide a switched or floating single-pole, double-throw (SPDT) output and operate standard Honeywell valves.
Features
- Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke
- No separate linkage required
- Conduit connector standard
- No adjustments required on linkage.
- Accurate valve positioning
- Low power consumption
- High close-off ratings
- Force limiting end switches
- Manual operator
- Synchronous motor
- Maintenance free
- ML7420 has an internal selector plug that can be used to reverse the direction of action.
Product Specifications
