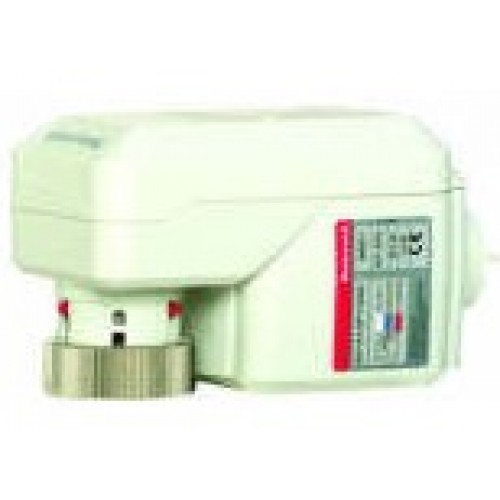

M6410
Cartridge Globe Valve Actuator are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Float.Cartr.Globe Valve Actuator,40.5 lb
Float.Cartr.Globe Valve Actuator,67.5 lb
Overview
Cartridge Globe Valve Actuator are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Features
- Suitable for Excel/IRC system or other controllers providing specified signals.
- Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port.
- No mounting tools required.
- Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers.
- Visual position indication (red pin).
Product Specifications
- Application
- HVAC
- Dimensions (in.)
- 2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep
- Dimensions (mm)
- 61 mm high x 49 mm wide x 100 mm deep
- Includes
- 1/2 in. conduit hub
- Used With
- 1/2 inch and 3/4 inch V58XX Globe Valves
- Weight (lb)
- 0.3125 lb
- Weight (kg)
- 0.15 kg
- Materials
- Low Maintenance Plastic Housing
- Mounting
- Threads onto V58XX valve bonnet
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- Flammability Rating UL94V-5V
- Electrical Connections
- Plenum-rated cable
- Operating Humidity Range (% RH)
- 5 to 95% RH
- Supply Voltage
- 24 Vac +10%, -30%
- Power Consumption
- Driving-- 0.7 VA
- Shipping and Storage Temperature Range (F)
- -40 F to +158 F
- Shipping and Storage Temperature Range (C)
- -40 C to +70 C
- Ambient Temperature Range (F)
- 32 F to 122 F
- Ambient Temperature Range (C)
- 0 C to 50 C
- Environmental, Electrical or Ingress Protection Rating
- IP42,Class I Insulation (24 Vac)
- Internal Auxiliary Switch
- 0
- Fluid Temperature (C)
- 130 C Maximum
- Fluid Temperature (F)
- 266 F Maximum
- Actuator Type
- Valve
- Control Signal
- SPDT; Two position; Floating
- Fail Safe Mode
- Stays in place
- Torque Rating (lb-in.)
- 40.5 lbf
- Torque Rating (Nm)
- 180 N
- Switches
- No
- Stroke (in.)
- 1/4 in.
- Stroke (mm)
- 6 mm
- Cable
- Threaded conduit connector
- Timing, Nominal
- Driving @ 60 Hz (sec)-- 125 sec
- Feedback
- No
- Manual operation
- None (use valve dust cap)
