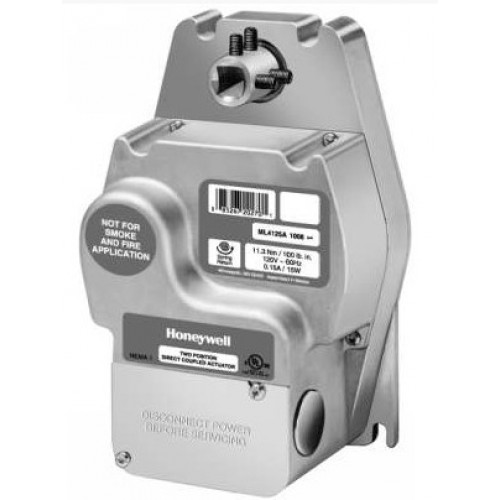

Product Specifications

Application

HVAC

Dimensions (in.)

7.5 in high x 5.13 in wide x 3.32 in deep

Dimensions (mm)

192 mm high x 129 mm wide x 84 mm deep

Includes

Mounting bracket, ground screw

Weight (lb)

6 lb

Weight (kg)

2.72 kg

Materials

Aluminum housing

Comments

Integral junction box with three 7/8 in. conduit openings (fittings not included)

Mounting

Direct Coupled

Frequency

60 Hz

Approvals, Underwriters Laboratories Inc.

UL873, Plenum Rated

Electrical Connections

Two color-coded leads

Operating Humidity Range (% RH)

5 to 95% RH, non-condensing

Supply Voltage

120 Vac ±10%

Power Consumption

Driving-- 0.18A, 18W, Holding-- 0.11A, 9W

Shipping and Storage Temperature Range (F)

-40 F to +140 F

Shipping and Storage Temperature Range (C)

-18 C to +60 C

Approvals, Canadian Underwriters Laboratories Inc.

cUL C22.2 No. 24-93

Ambient Temperature Range (F)

-40 F to +130 F

Ambient Temperature Range (C)

-18 C to +55 C

Environmental, Electrical or Ingress Protection Rating

NEMA 1

Internal Auxiliary Switch

0

Maximum Noise Rating

Driving (dB(A) @ 1m)-- 65; Holding (dB(A) @ 1m)-- 20 (no audible noise)

Stroke

95 ±3 degrees

Shaft Dimensions (in.)

3/8 to 1/2 in. square or round

Actuator Type

Damper

Control Signal

Two position; SPST

Fail Safe Mode

Spring Return

Torque Rating (lb-in.)

40 lb-in.

Torque Rating (Nm)

4.5 Nm

Spring Return Torque/Force (lb-in., lbf)

40 lb-in.

Spring Return Torque/Force (Nm, N)

4.5 Nm

Additional Torque Ratings (lb-in.)

Maximum Stall-- 150 lb-in.

Additional Torque Ratings (Nm)

Maximum Stall-- 17 Nm

External Auxiliary Switches Available

Yes, 32003532-005

Timing, Nominal

Driving @ 60 Hz-- 20 sec, 25 sec maximum

Spring Return Timing

Maximum-- 15 sec

Shaft Adapter Type

Aluminum Hub, four set screws

Shaft Dimensions (mm)

10 to 13 mm square/round

Spring Return Direction

CCW

Electrical Connections (in.)

16 in.

Electrical Connections (mm)

406 mm
