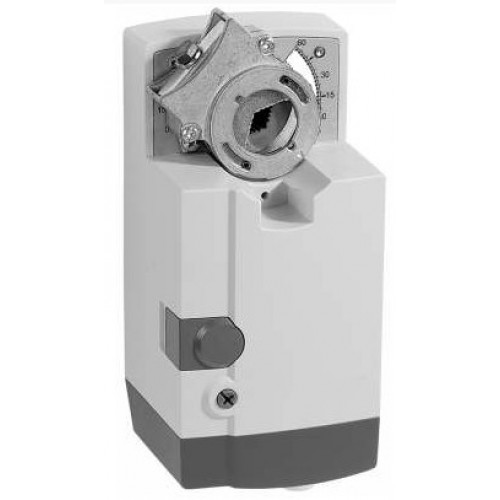

MN6134
The MN6134 is a 300 lb-in (34Nm), non-spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT) control for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
Two position, floating actuator with 300 lb-in non-spring return and 24 Vac
Overview
The MN6134 is a 300 lb-in (34Nm), non-spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT) control for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
Features
- Control for air damper applications with up to 85 sq ft assuming 3.5 in-lb per sq ft of damper area, velocity independent.
- Patented self-centering shaft adapter.
- Access cover to facilitate connectivity.
- Declutch for manual adjustment.
- Mechanical end limits.
- Field-installable auxiliary switches.
- Rotation direction selectable by switch.
- Mountable in any orientation (no IP54 if upside down).
- Mechanical position indicator.
- CE approved. UL approved.
Product Specifications
- Application
- HVAC
- Dimensions (in.)
- 8.78 in high x 3.62 in wide x 3.15 in deep
- Dimensions (mm)
- 223 mm high x 92 mm wide x 80 mm deep
- Includes
- Mounting bracket, self-centering shaft adapter
- Weight (lb)
- 3.2 lb
- Weight (kg)
- 1.45 kg
- Materials
- Plenum rated plastic housing
- Comments
- Integral 1/2 in. NPSM conduit connection.
- Mounting
- Direct Coupled
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL873, Plenum Rated
- Tradeline Value
- Tradeline
- Electrical Connections
- Enclosed screw terminal strip (22 to 14 AWG)
- Operating Humidity Range (% RH)
- 5 to 95% RH, non-condensing
- Supply Voltage
- 24 Vac ±15%; 24 Vdc
- Power Consumption
- Driving-- 9 VA, 9 W
- Shipping and Storage Temperature Range (F)
- -40 F to +175 F
- Shipping and Storage Temperature Range (C)
- -40 C to +80 C
- Approvals, CE
- 89/336/ECC, 73/23/EEC
- Approvals, Canadian Underwriters Laboratories Inc.
- cUL C22.2 No. 24-93
- Ambient Temperature Range (F)
- -5 F to +140 F
- Ambient Temperature Range (C)
- -20 C to +60 C
- Approvals, C-Tick
- N314
- Environmental, Electrical or Ingress Protection Rating
- NEMA 2
- Internal Auxiliary Switch
- 0
- Maximum Noise Rating
- Driving (dB(A) @ 1m)-- 40
- Stroke
- 95 ±3 degrees
- Shaft Dimensions (in.)
- 3/8 to 1.06 in. round or 3/8 to 11/16 in. square
- Actuator Type
- Damper; Valve
- Control Signal
- Floating; SPDT; On/Off
- Fail Safe Mode
- Non-Spring Return
- Torque Rating (lb-in.)
- 300 lb-in.
- Torque Rating (Nm)
- 34 Nm
- Additional Torque Ratings (lb-in.)
- Maximum Stall-- 327 lb-in.
- Additional Torque Ratings (Nm)
- Maximum Stall-- 37 Nm
- External Auxiliary Switches Available
- Yes, SW2-US
- Rotation to Open
- By switch
- Timing, Nominal
- Driving @ 60 Hz-- 95 sec
- Shaft Adapter Type
- Self-centering clamping
- Manual operation
- Declutch mechanism
- Shaft Dimensions (mm)
- 10 to 27 mm round or 10 to 18 mm square
